Stainless Steel Y-Strainer
Stainless Steel Y-Strainers Class 800, Threaded end Description: Investment casting body / cap Materials: ASTM A351-CF8M Pressure temperature rating: 800 PSI (PN40) / 350 deg. F Stainless steel 316 or 304 screen (mesh) Threaded end: BSPT, NPT, DIN259 and DIN2999 Size: 1/4" ~ 2" Standard materials of parts Item Parts Material 1 Body CF8M 2 Screen SS304 3 Gasket PTFE 4 Cap CF8M >
Product Specifications
Materials & Components
| Item | Parts | Material |
| 1 | Body | CF8M |
| 2 | Screen | SS304 |
| 3 | Gasket | PTFE |
| 4 | Cap | CF8M |

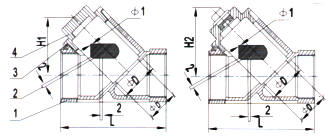

Dimensions
| Size | D | L | H1 |
| 1/4" | 10 | 65 | 35 |
| 3/8" | 12 | 65 | 37 |
| 1/2" | 15 | 65 | 45 |
| 3/4" | 20 | 80 | 45 |
| 1" | 25 | 90 | 57 |
| 1.1/4" | 32 | 105 | 58 |
| 1.1/2" | 40 | 120 | 66 |
| 2" | 50 | 140 | 77 |
Confirm Project Requirements
Product specifications, materials, standards, and availability may vary by project. Please include your required size, pressure rating, material, standard, and quantity in the RFQ.
